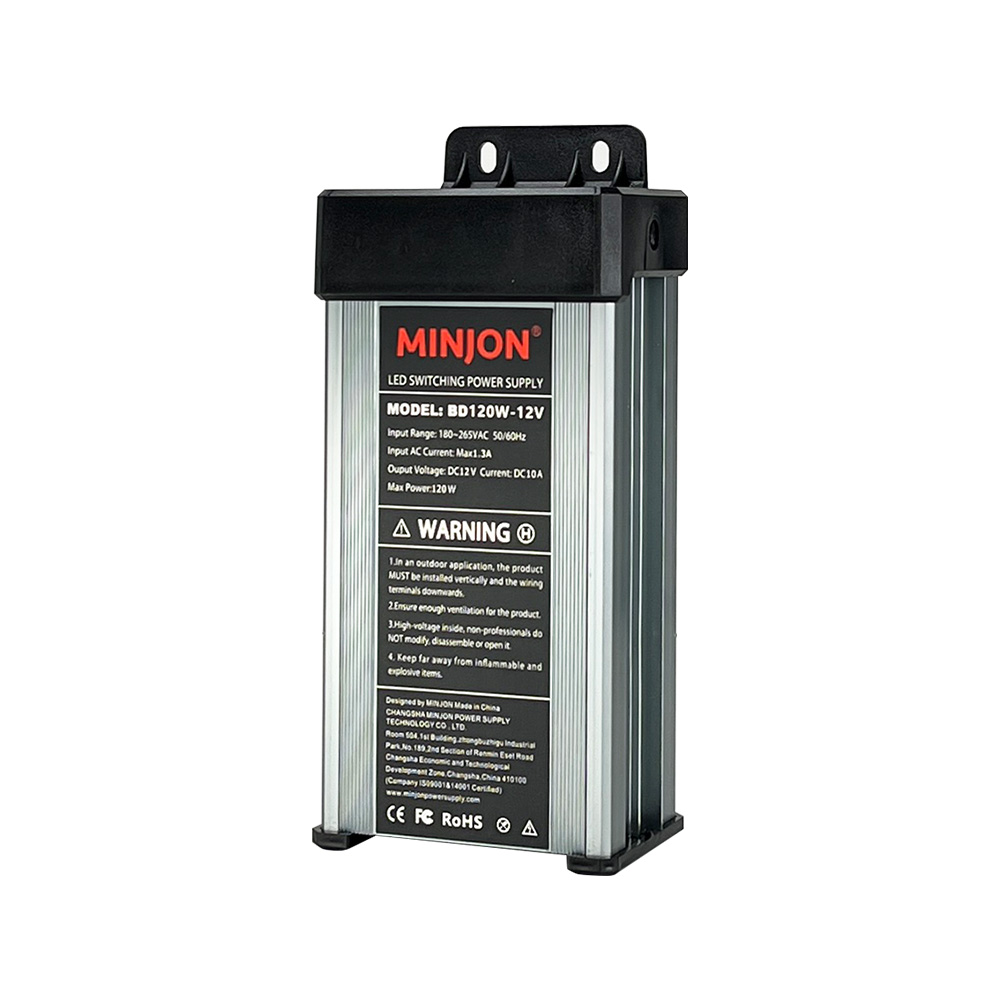

Model: BD120W-12V
Power:120W
Input Voltage: 176-264VAC 50/60Hz
Output Voltage: 12V
Current: 10A
Heat Dissipation: Self-cooling
Product Size: 159.7*72.6*47.2MM
2 years warranty
BD120W-12V
MINJON

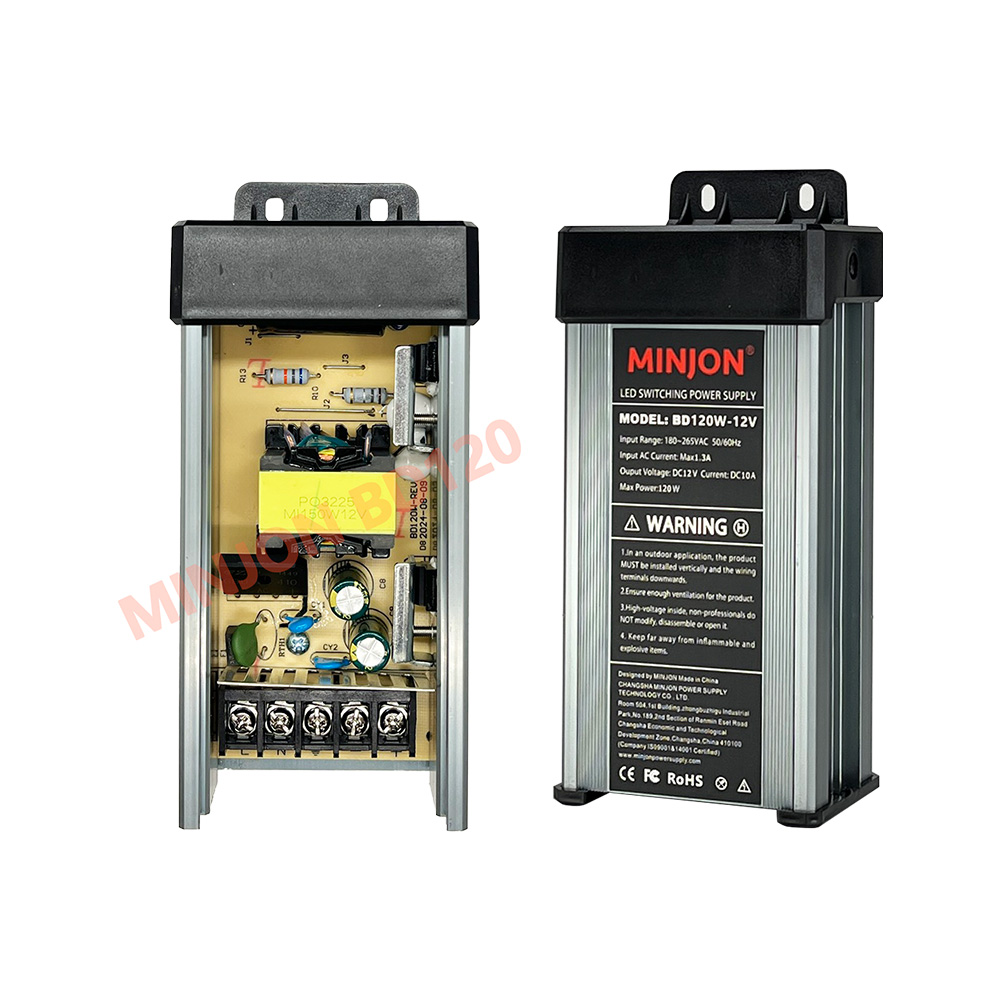

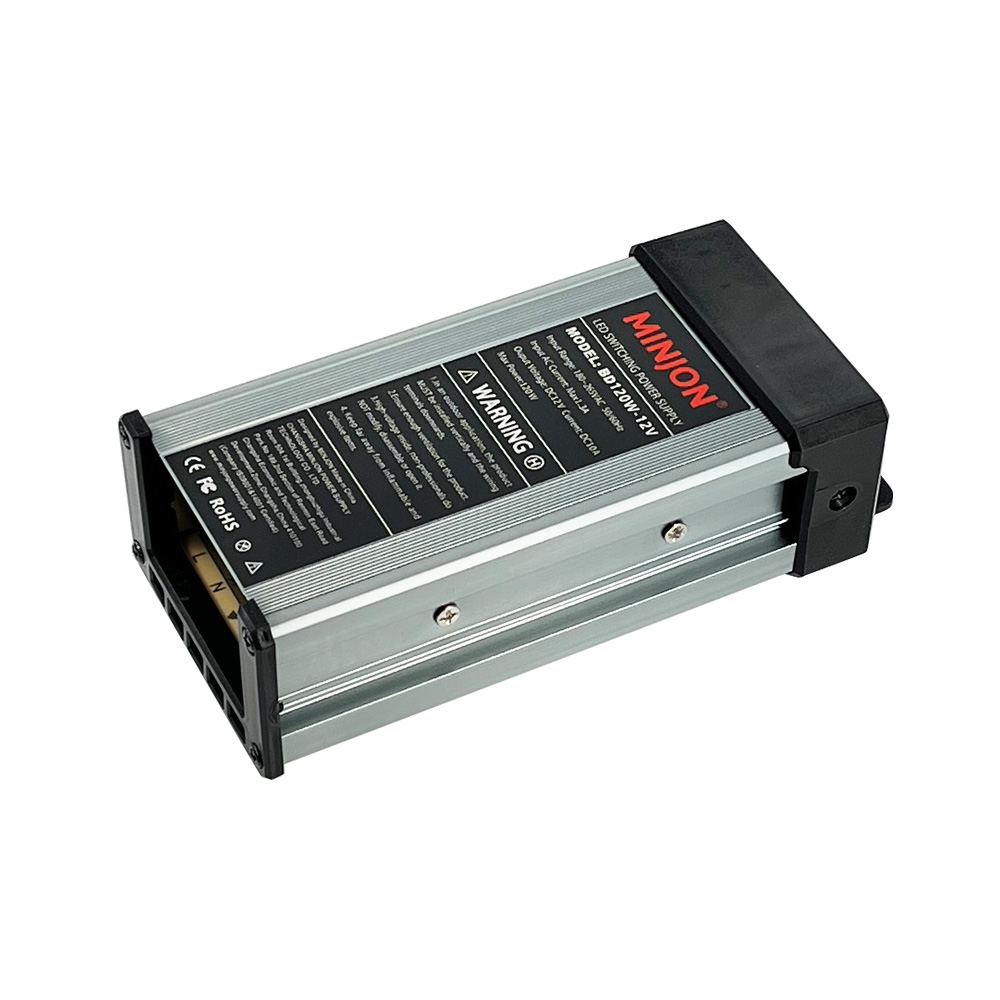

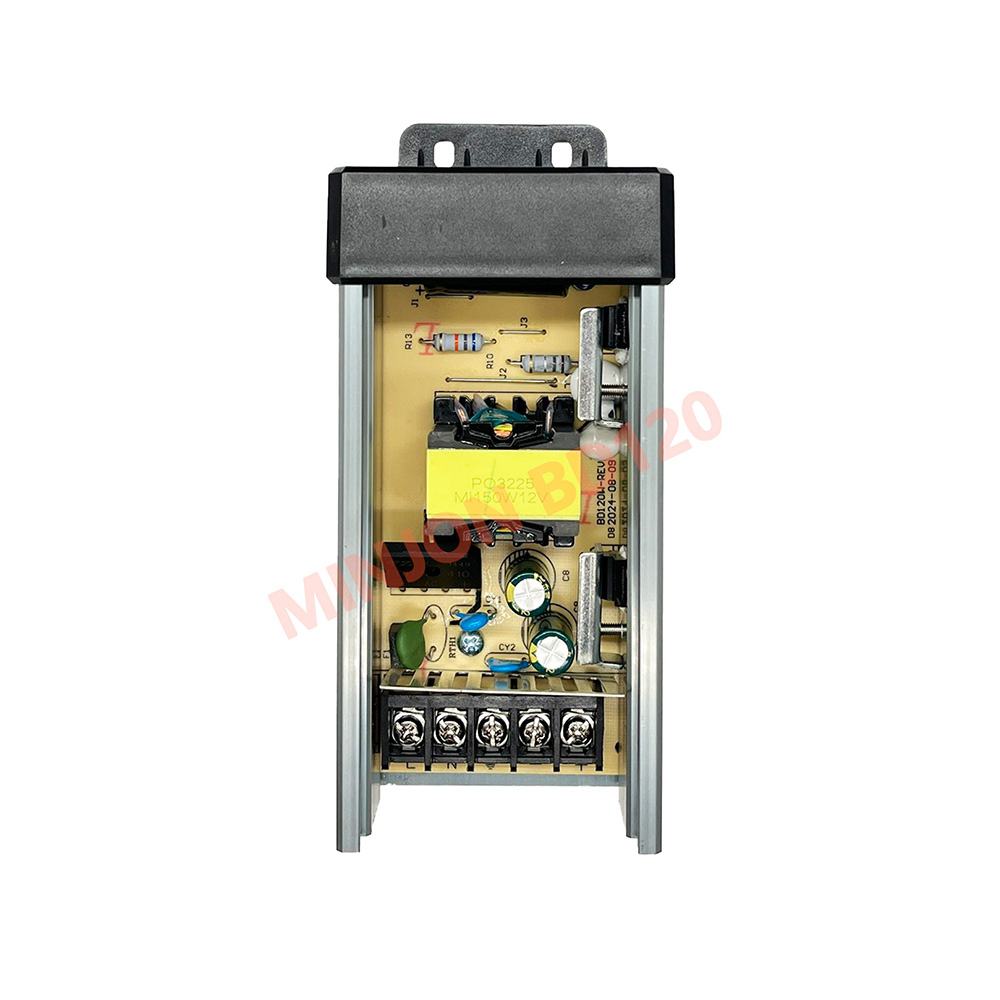

BD120W-12V Classic Rainproof LED Power Supply
Full range: 60W - 800W
Short-circuit,Over-load,Over voltage protections
Intelligent temperature control
100% Loading aging test for 2 hours
Been sold all over the world more than 15 years
Input | ||
Model | BD120W-12V | |
Input Voltage Range | 176Vac~264Vac | |
Rated Input Voltage Range | 200Vac~240Vac | |
Frequency | 47Hz~63Hz | |
Efficiency | ≥83% | |
Input Current | <2.5A | |
Inrush Starting Current | <60A (at 220Vac, the power supply starts in the cooling state) | |
Power Factor | -- | |
Standby Power | <2W | |
Output | ||
Voltage | 12V | |
Current | 10A | |
Power | 120W | |
Ripple Wave & Noise | ≤550mV | |
Dynamic Load | 10%~100%:±600mV 50%~100%:±400mV 10%~50%:±300mV | |
Voltage Regulation Accuracy | ±3% | |
Source Adjustment Rate | ±1% | |
Load Regulation | ±3% | |
Temperature Coefficient | ±0.03%/℃ | |
Start-up Time | ≤2000ms @220Vac full load | |
Rise Time | ≤20ms | |
Hold-up Time | ≥10mS（Input 220Vac, Output 4.98A Load) | |
Voltage Overshoot | <5.0% | |
