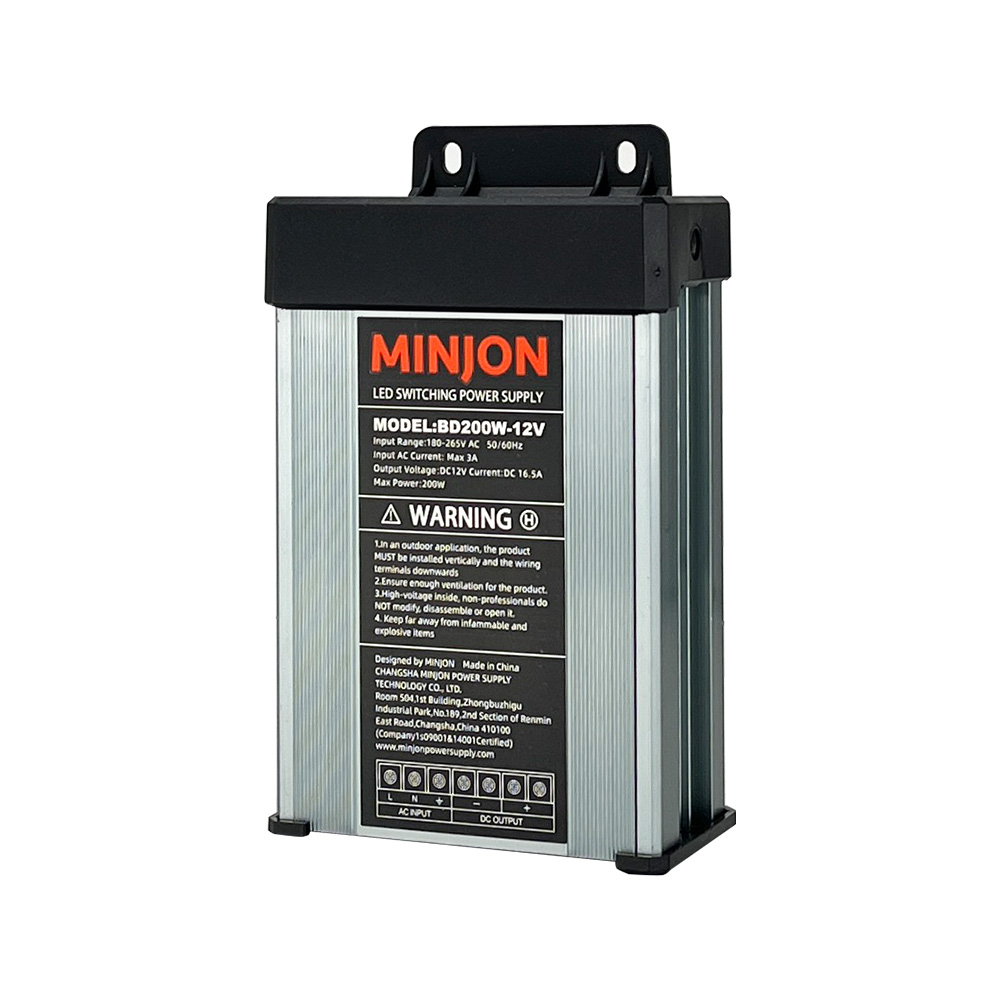

Model: BD200W-12V
Power:200W
Input Voltage: 176-264VAC 50/60Hz
Output Voltage: 12V
Current: 16.67A
Heat Dissipation: Fan
Product Size: 155 *92.6*49.5MM
2 years warranty
BD200W-12V
MINJON

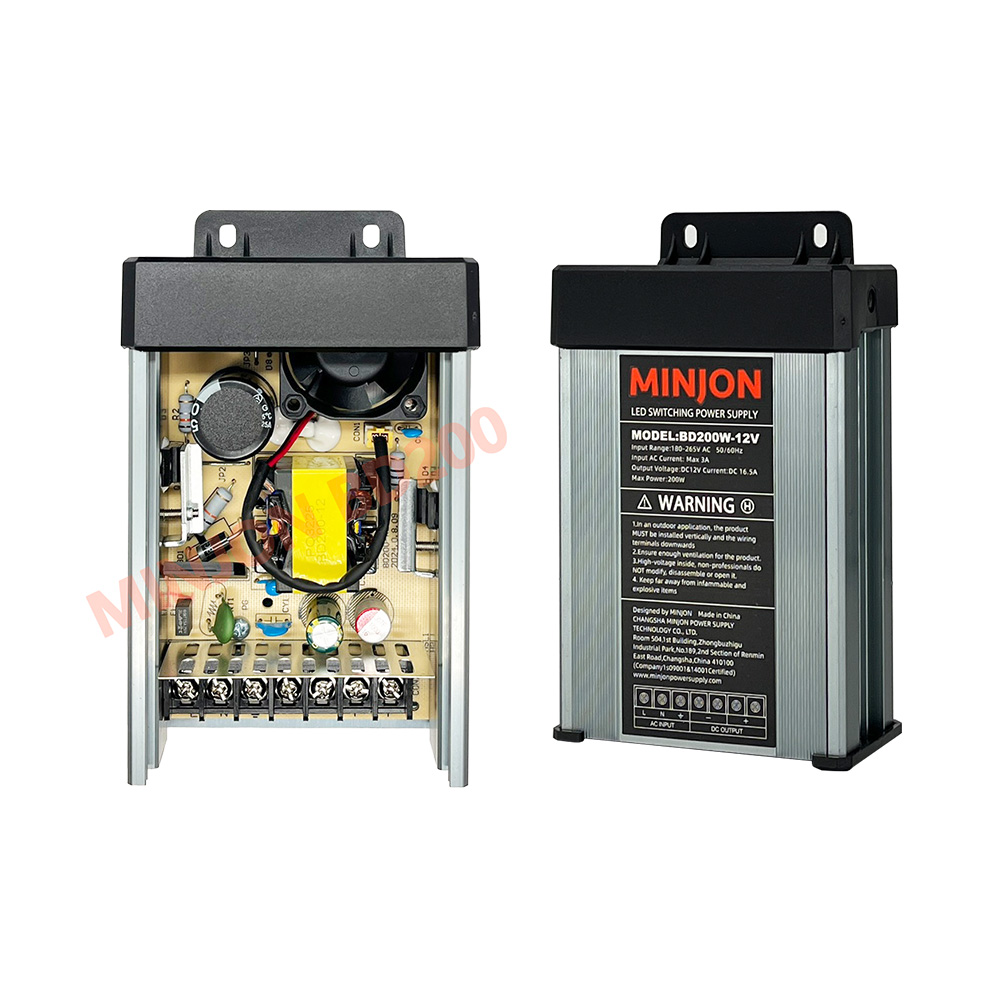

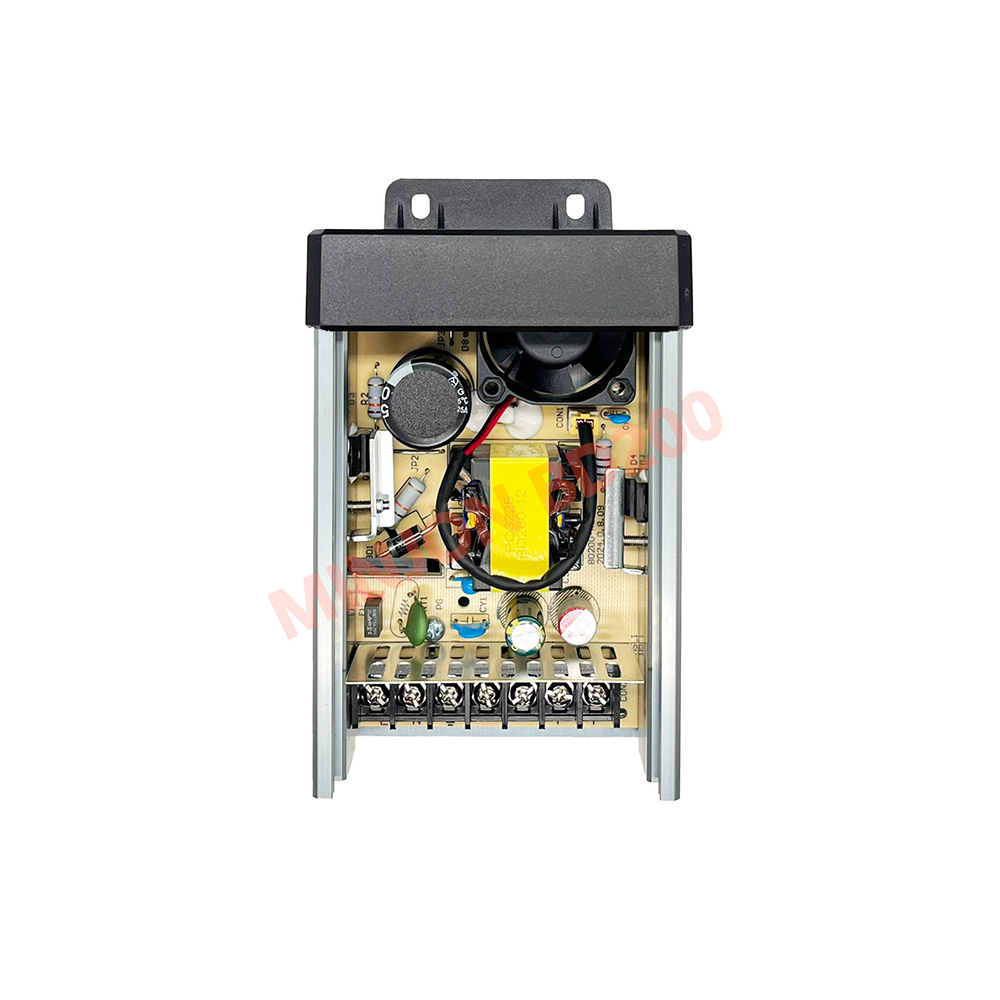

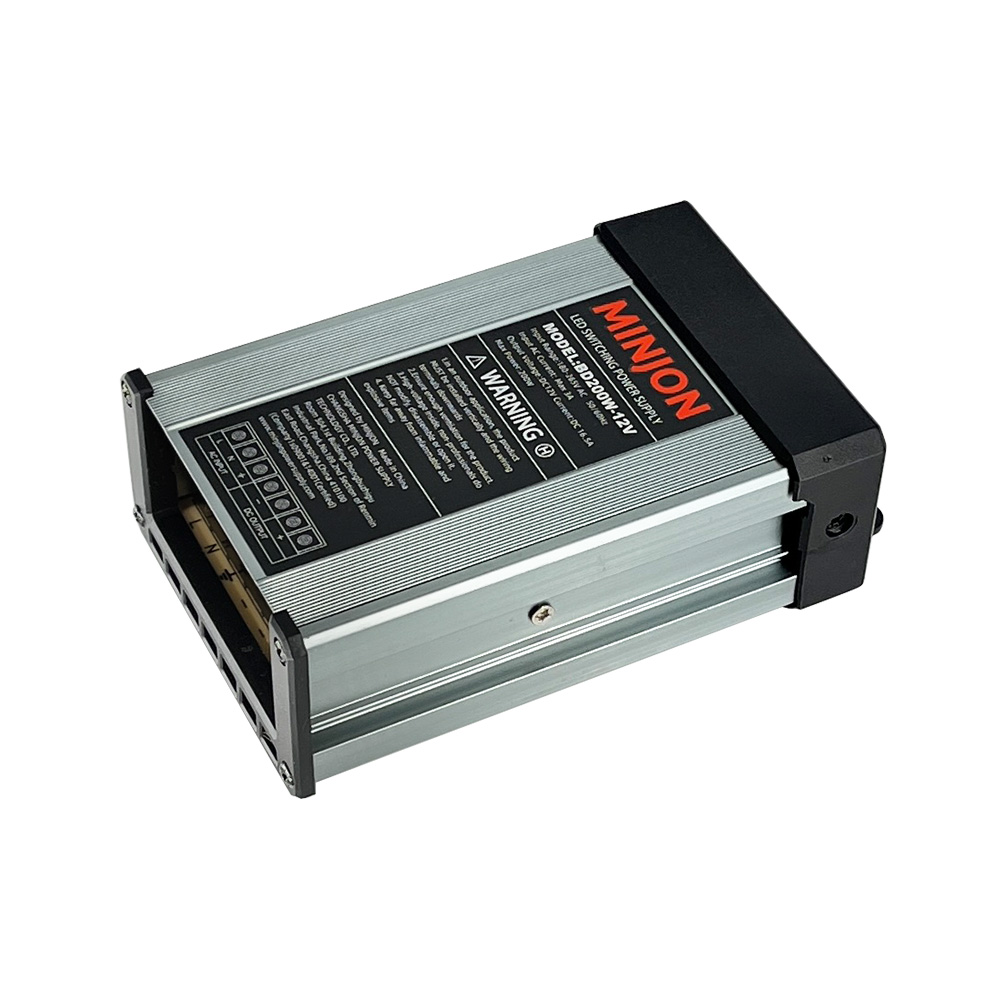

BD200W-12V Classic Rainproof LED Power Supply
Full range: 60W - 800W
Short-circuit,Over-load,Over voltage protections
Intelligent temperature control
100% Loading aging test for 2 hours
Been sold all over the world more than 15 years
Input | ||
Model | BD200W-12V | |
Input Voltage Range | 176Vac~264Vac | |
Rated Input Voltage Range | 200Vac~240Vac | |
Frequency | 47Hz~63Hz | |
Efficiency | ≥83% | |
Input Current | <2.5A | |
Inrush Starting Current | <80A (at 220Vac, the power supply starts in the cooling state) | |
Power Factor | -- | |
Standby Power | <3W | |
Output | ||
Voltage | 12V | |
Current | 16.7A | |
Power | 200W | |
Ripple Wave & Noise | ≤500mV | |
Dynamic Load | 10%~100%:±600mV 50%~100%:±400mV 10%~50%:±300mV | |
Voltage Regulation Accuracy | ±3% | |
Source Adjustment Rate | ±1% | |
Load Regulation | ±3% | |
Temperature Coefficient | ±0.03%/℃ | |
Start-up Time | ≤2000ms @220Vac full load | |
Rise Time | ≤20ms | |
Hold-up Time | ≥10mS（Input 220Vac, Output 4.98A Load) | |
Voltage Overshoot | <5.0% | |
