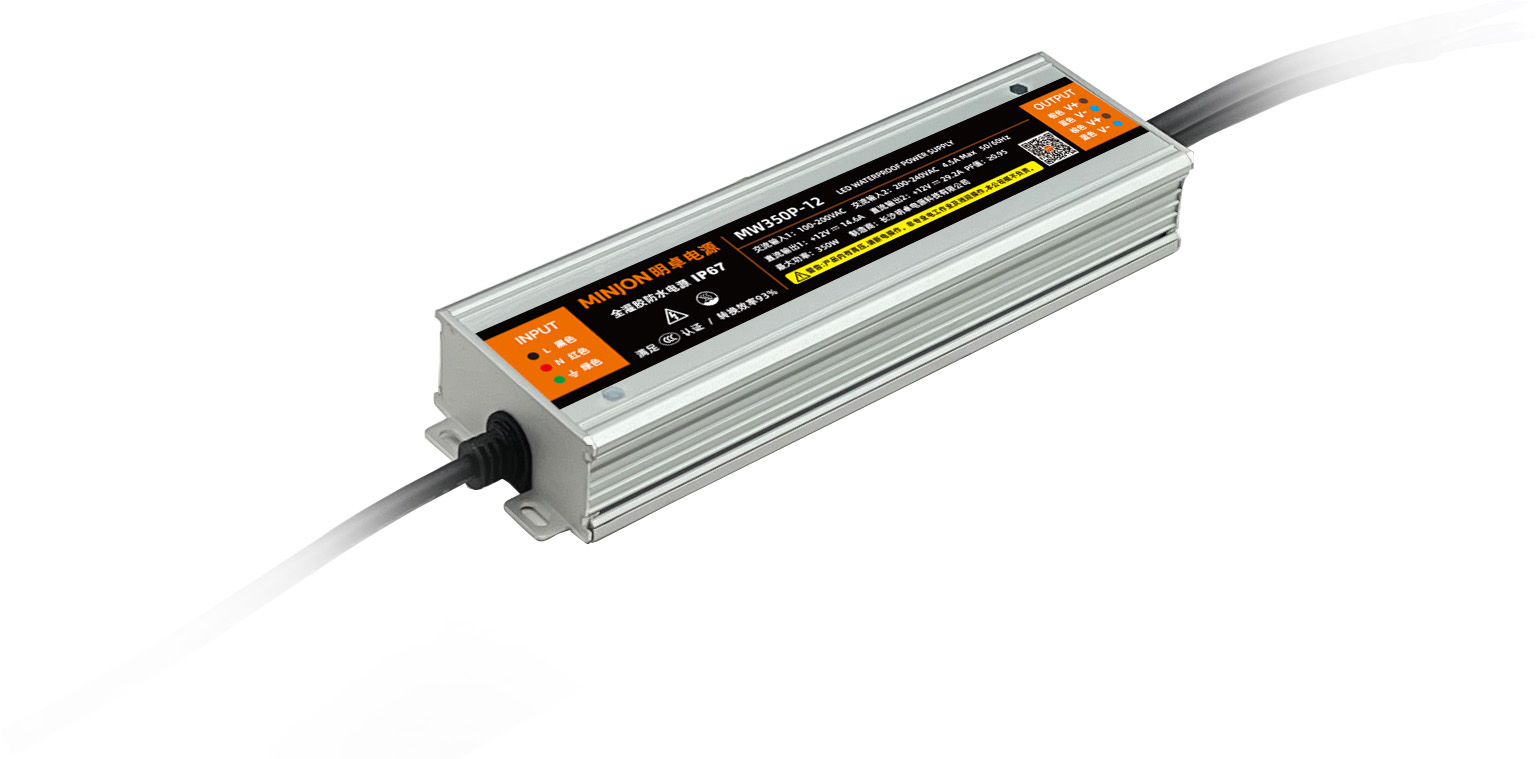

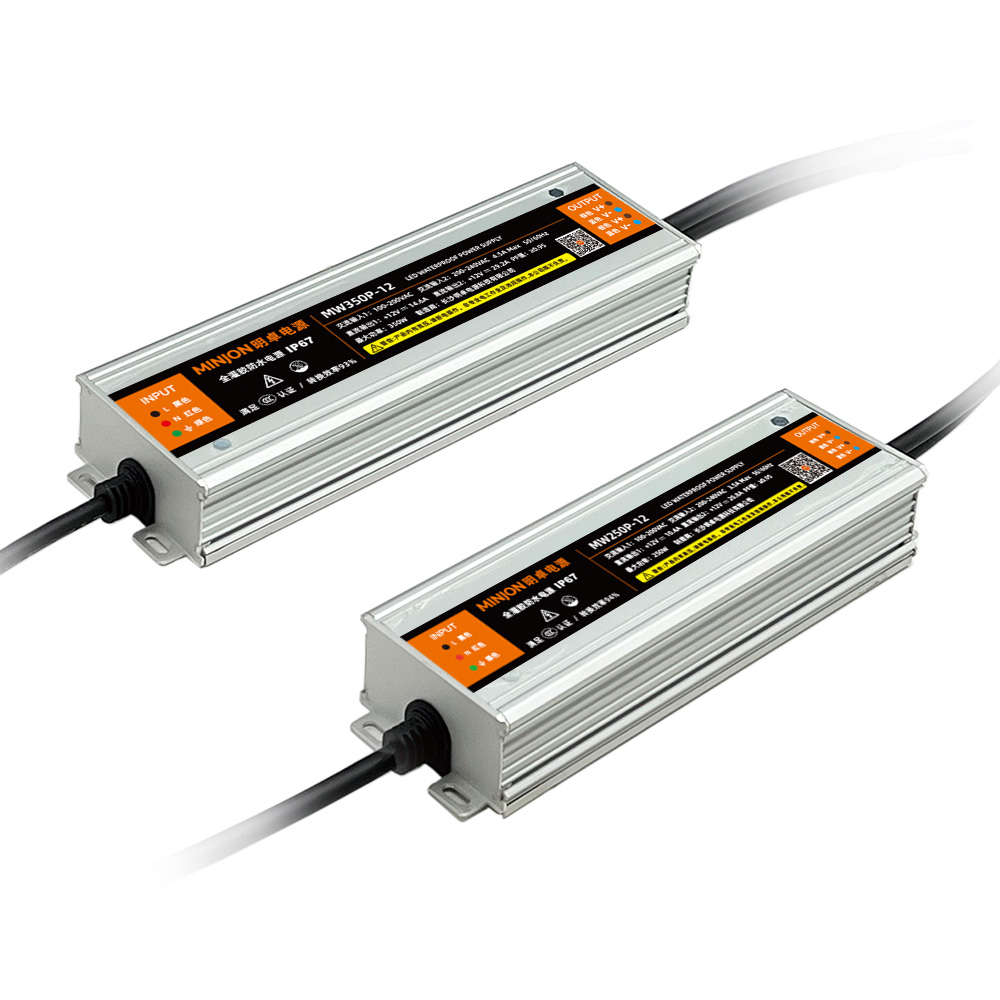

MW350P-12V IP67 Waterproof Power Supply

Model

MW350P-12

Input Voltage Range

90Vac~264Vac

Rated Input Voltage Range

110Vac~240Vac

Frequency

47Hz~63Hz

Efficiency

92%@230Vac Full Load

Input Current

≤4.5A

Inrush Starting Current

<100A (at 220Vac, the power supply starts in the cooling state)

Power Factor

≥0.95@220Vac@Full Load

Standby Power

≤2W

Output

Voltage

12V

Current

29.2A

Power

350W

Ripple Wave & Noise

350mVp-p

Dynamic Load

10%~100%：±500mV  50%~100%：±400mV  10%~50%： ±400mV

Voltage Regulation Accuracy

±3%

Source Adjustment Rate

±1%

Load Regulation

±3%

Temperature Coefficient

±0.03%/℃

Start-up Time

≤2000ms @220Vac full load

Rise Time

≤20ms

Hold-up Time

≥10mS（Input 220Vac, 50% Load)

Voltage Overshoot

<5.0%
