Model: BD400W-12V
Power: 400W
Input Voltage: 220-240VAC 50/60Hz
Output Voltage: 12V
Current: 33.3A
Heat Dissipation: Fan
Product Size: 192.5*113*48.5MM
2 years warranty
BD400W-12V
MINJON

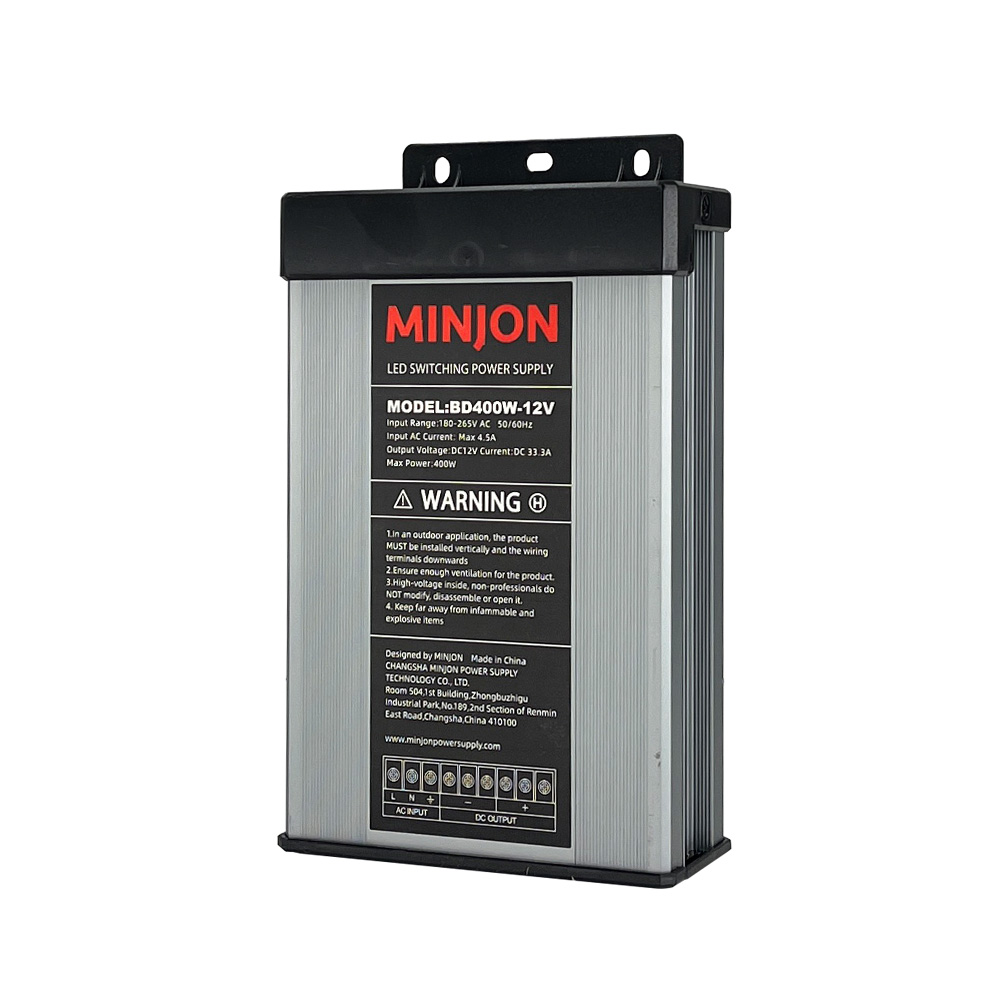

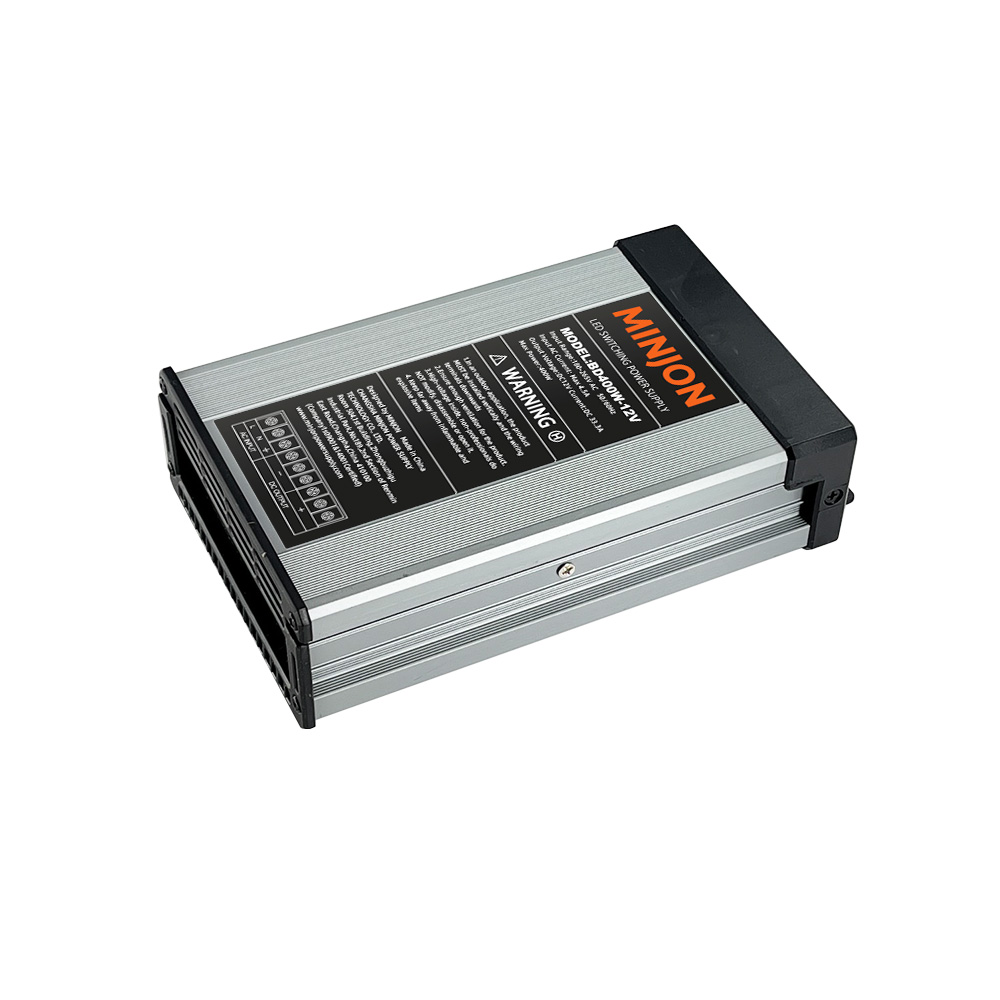

BD400W-12V Outdoor Rainproof Power Supply
Full range: 60W - 800W
Short-circuit,Over-load,Over voltage protections
Intelligent temperature control
100% Loading aging test for 2 hours
Been sold all over the world more than 15 years
Input | ||
Model | BD400W-12V | |
Input Voltage Range | 176Vac~264Vac | |
Rated Input Voltage Range | 200Vac~240Vac | |
Frequency | 47Hz~63Hz | |
Efficiency | 83%@230Vac | |
Input Current | <5A | |
Inrush Starting Current | <100A (at 220Vac, the power supply starts in the cooling state) | |
Power Factor | -- | |
Standby Power | <2W | |
Output | ||
Voltage | 12V | |
Current | 33.3A | |
Power | 400W | |
Ripple Wave & Noise | ≤800mV | |
Dynamic Load | 10%~100%：±600mV 50%~100%：±500mV 10%~50%： ±500mV | |
Voltage Regulation Accuracy | ±3% | |
Source Adjustment Rate | ±1% | |
Load Regulation | ±3% | |
Temperature Coefficient | ±0.03%/℃ | |
Start-up Time | ≤2000ms @220Vac full load | |
Rise Time | ≤20ms | |
Hold-up Time | ≥10mS（Input 220Vac, Output 4.98A Load) | |
Voltage Overshoot | <5.0% | |
